The Barcode, Office Tower AKH Wien

Project description

Conversion of an accommodation tower to an office tower

Location

Vienna, AUT

Client

University Hospital Vienna

Scope of services

Conceptual design / Planning application / Technical design

Planning

2020 – 2023

Floor area

13.500 m²

Visualization

TELGRAM71

Architecture Photography

Hertha Hurnaus

Greetings from the roaring ‘60s!  A few highlights include: Willy Brandt becoming chair of Germany’s Social Democratic Party, the birth control pill coming onto the market, Jean-Paul Sartre rejecting the Nobel Prize, Star Trek celebrating its premiere and the Rolling Stones releasing their first LP. In Vienna, however, a twenty-storey reinforced concrete staff accommodation tower was built between 1964 and 1967. Now after almost a decade of partial vacancy, this dormitory tower is being converted, turning it into a modern office building for the Vienna Healthcare Group and the University Hospital Vienna.

The challenges of adding to an existing structure
The conversion of an out-of-date concrete shell into a contemporary work environment presents particular challenges. The tower is to be entirely gutted, leaving only the reinforced concrete frame. Despite structural and geometric constraints, a new room arrangement that offers great flexibility and efficiency is incorporated into the existing structure. Essential components of the renovation include a seminar centre on the ground floor and modern offices on the upper storeys as well as structural and technical renovation. The building plant will be renovated and relocated to the roof, creating an open landscape on the top floor that meets contemporary work requirements. The new, thermally optimized façade will be constructed of metal panels that change white in a barcode pattern and will be crowned by a one and a half storey high glass element. The pavement of the redesigned forecourt takes up the barcode theme, while street furniture, benches, planters – containing winter-hardy medicinal plants and gingko – and porches are made of precast reinforced concrete elements. The overall atmosphere brings the subtle charm of the sixties to the 2020s.

Attractive architecture for a contemporary work space
Glazed partition walls bring light right to the heart of the building, creating a transparent, contemporary work space. The seminar centre can seat a hundred people or be divided into smaller units to match various meeting configurations, thanks to the use of mobile folding walls. Various versatile spaces on the office floors can be used for spontaneous meetings, alternative work spaces or relaxation zones. Vienna Healthcare Group’s Corporate Identity is reflected in the colour scheme of the project. Thus petrol, green, mint and blue-grey are used liberally, whilst wood, metal and glass create an elegant and pleasant atmosphere for all employees.

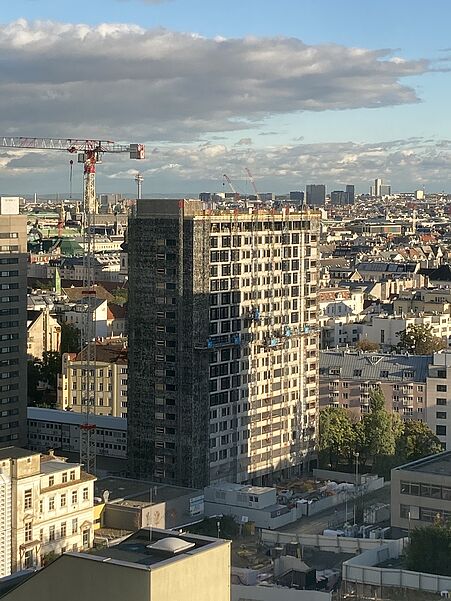

Building in existing contexts is Today´s Agenda, construction start in 2021

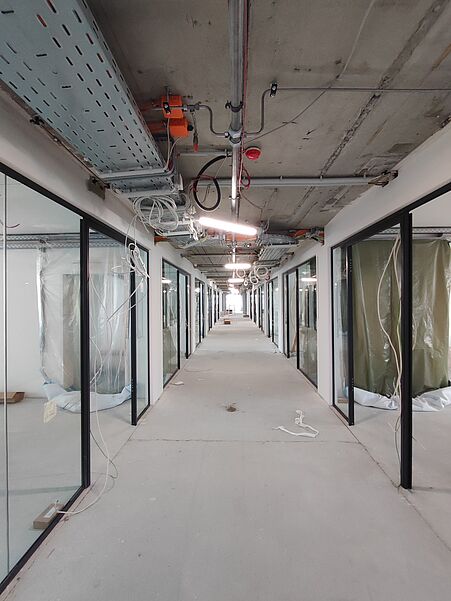

The old staff residence from the 1960s was completely gutted and carefully cleared of contaminated sites

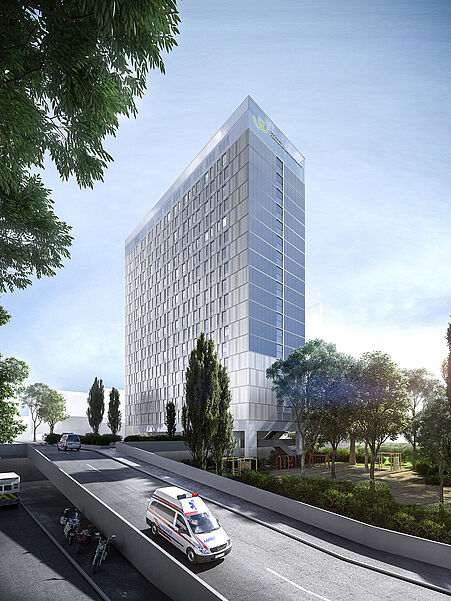

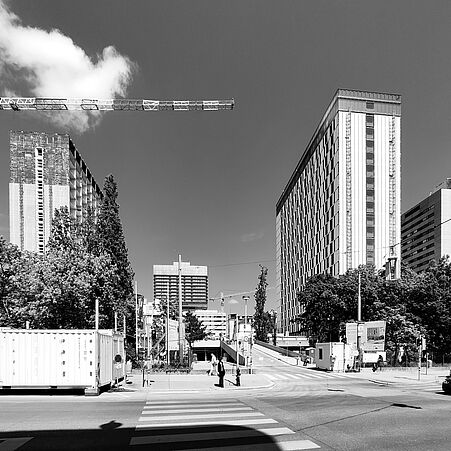

The Barcode office tower is a new landmark in Vienna. It enhances the joint site of University Hospital Vienna and Medical University of Vienna – and is visible from afar.

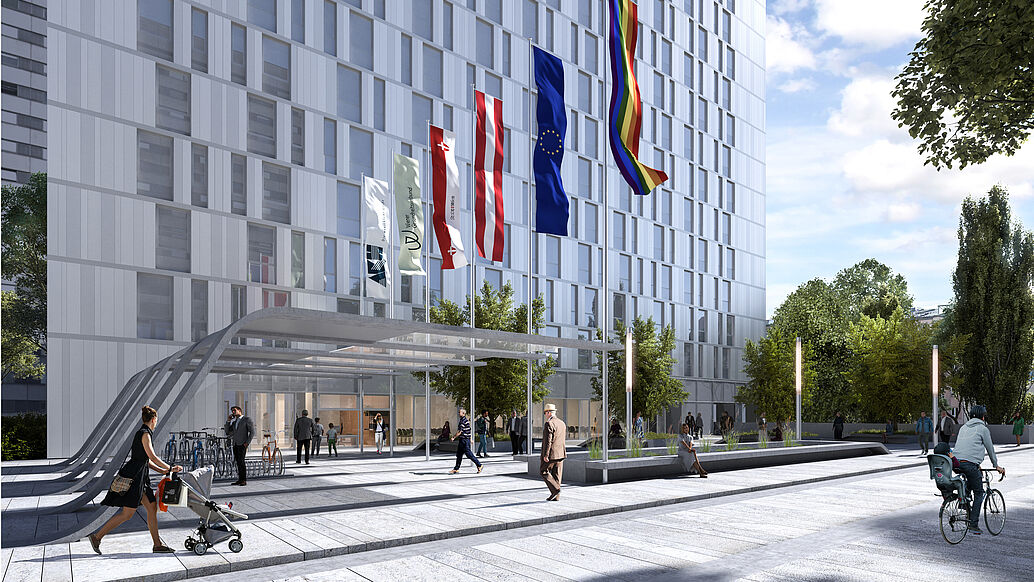

On the new forecourt, a pleasant new quality of stay is being created with plants and street furniture made of folded reinforced concrete elements, here the access roofing

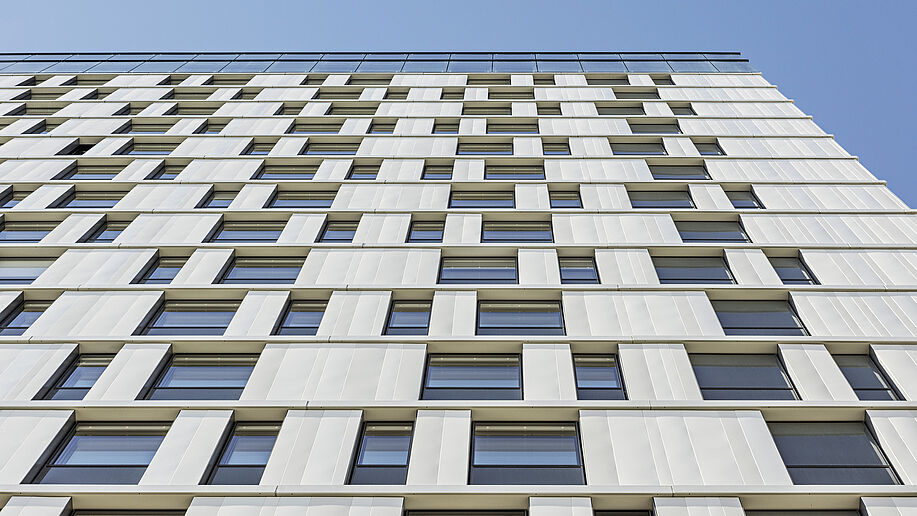

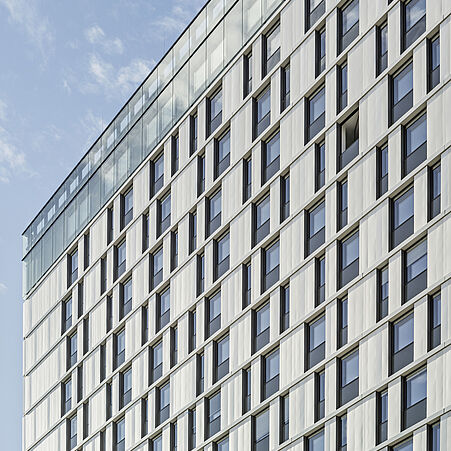

The opaque façade elements made of highly reflective aluminium panels of different widths are freely positioned. With different, slightly iridescent shades of white, they create the barcode effect of the façade, which gives the new office tower its name. Horizontal bands organise the façade vertically. The top storey with its mullion-transom façade crowns the office tower.



Detail of the access roofing on the new forecourt of the office tower on Lazarettgasse in Vienna

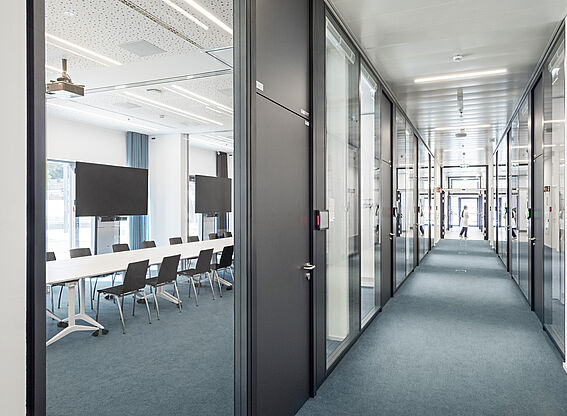

A separate meeting area in the flexibly divisible seminar centre on the ground floor

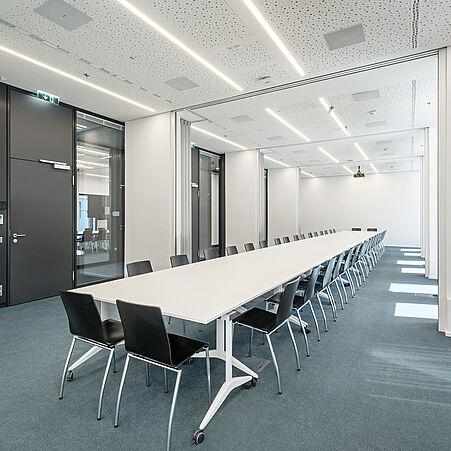

The flexibly divisible seminar centre on the ground floor

A further, separate meeting area

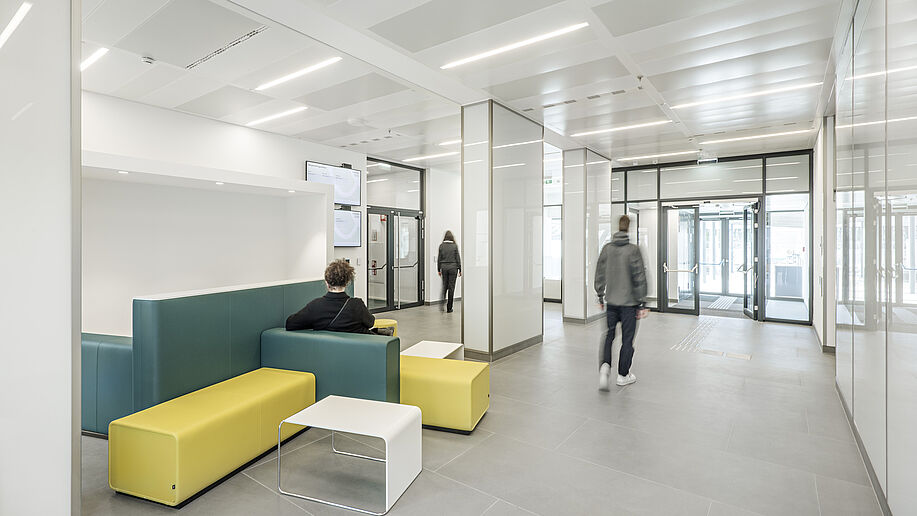

Foyer on the ground floor

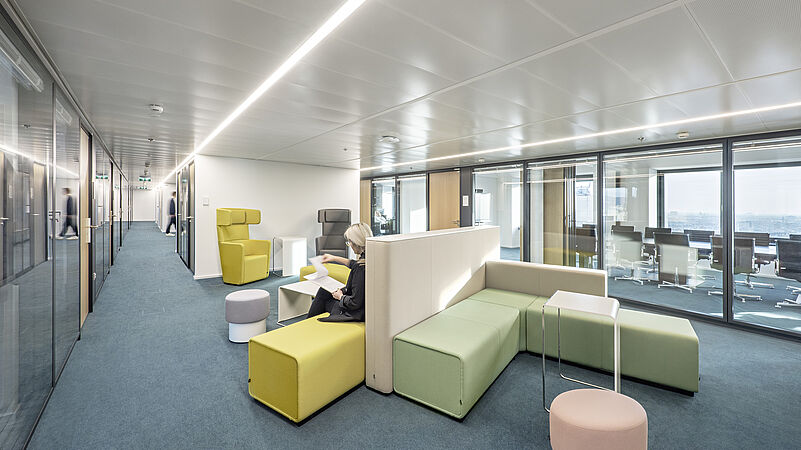

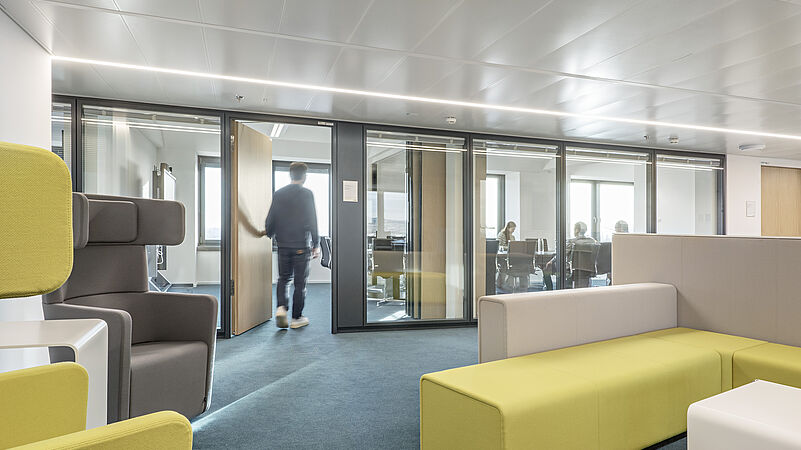

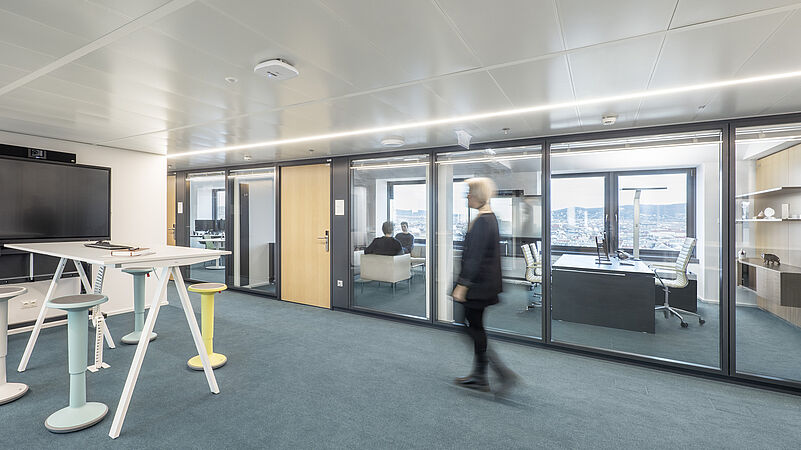

Open space on the top level, view of the meeting room to the east

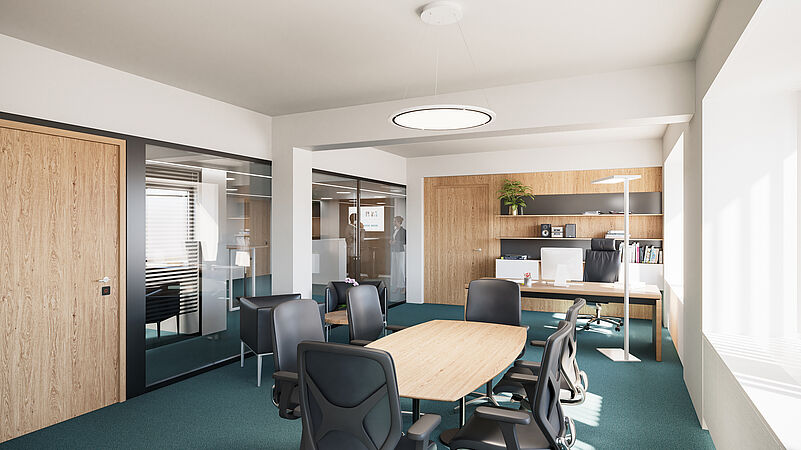

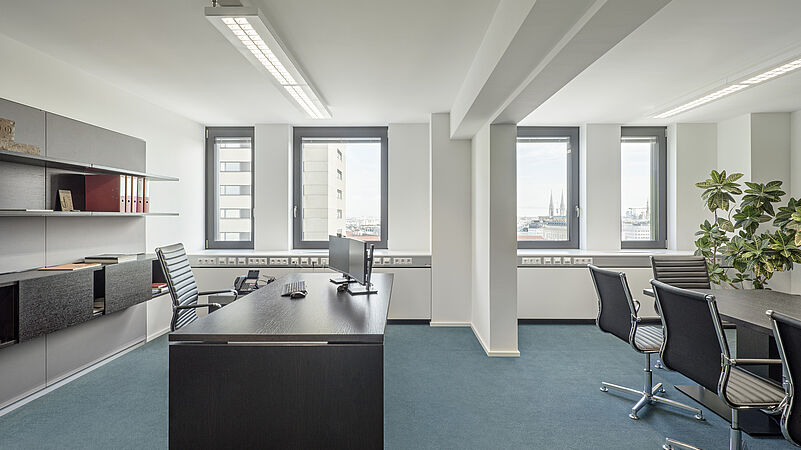

Open space on the top floor, view of the management office to the west

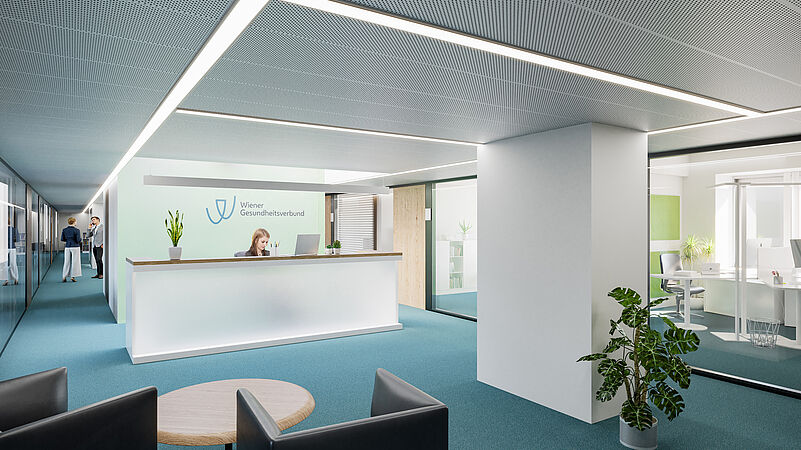

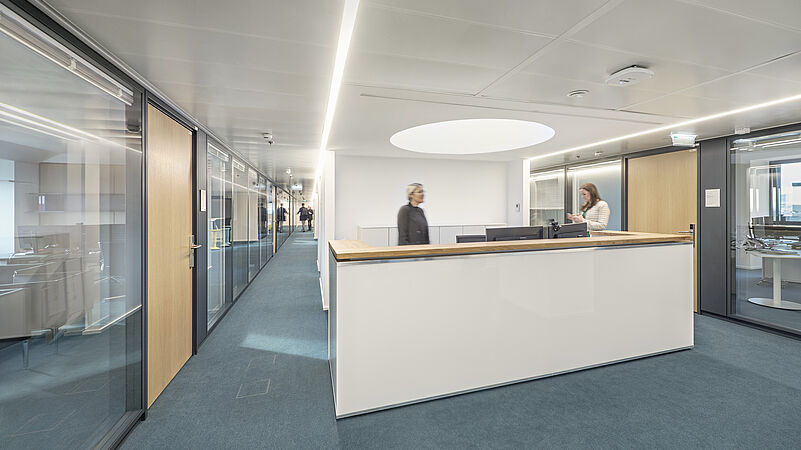

Reception management level

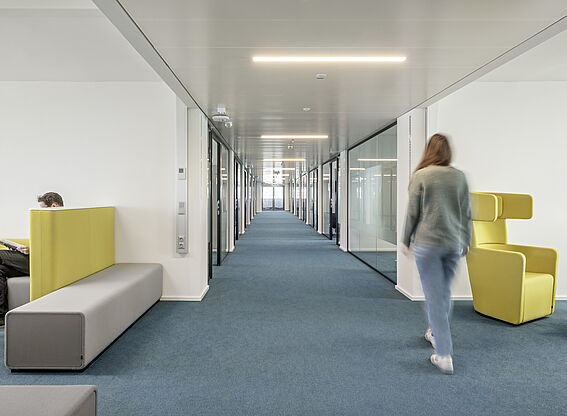

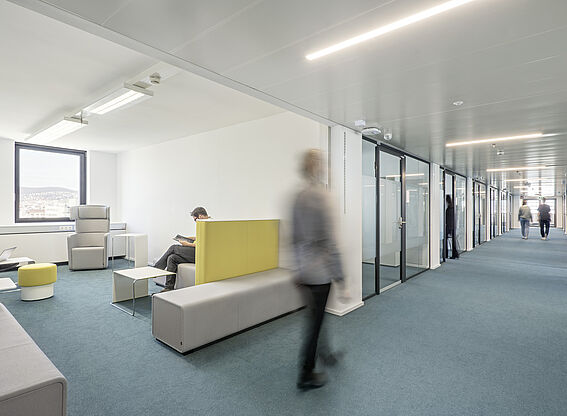

Corridor with open lounge


Lounge or open-plan work space


The Barcode – this state-of-the-art office building commissioned by the Vienna Healthcare Group and the University Hospital Vienna meets all the requirements of a modern work environment in a congenial atmosphere.

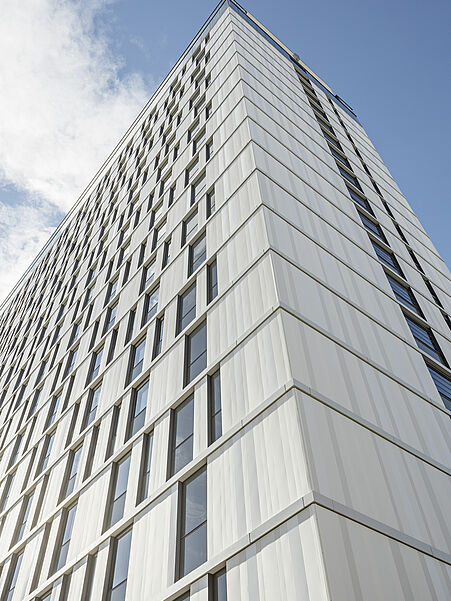

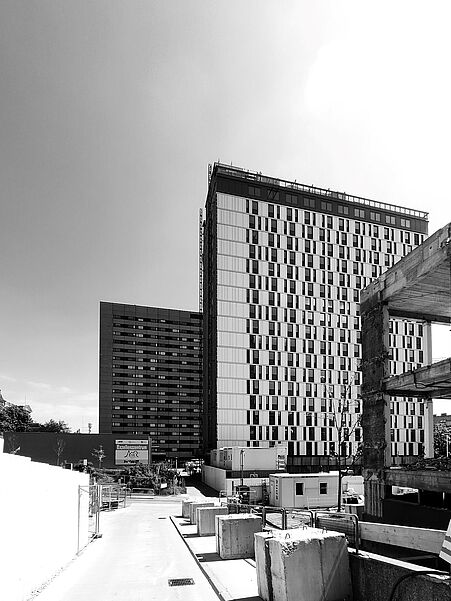

West facade, completed May 2023


A modern office environment for the highest demands is created, May 2023

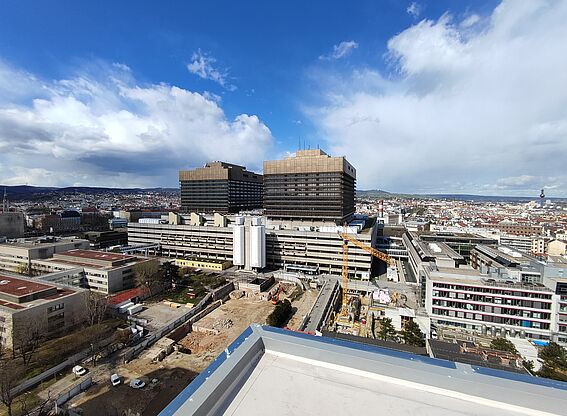

View of the AKH towers from the roof, May 2023


May 2023

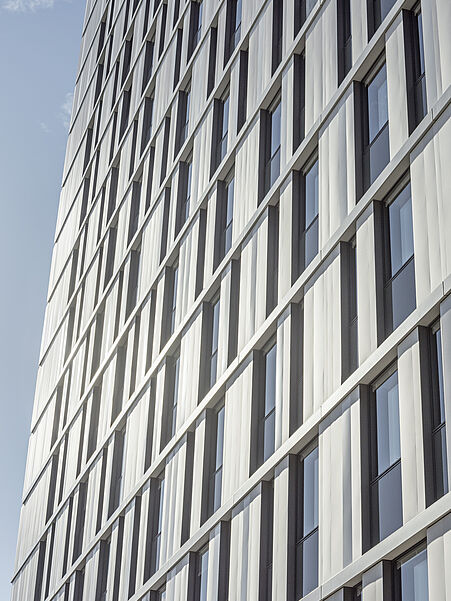

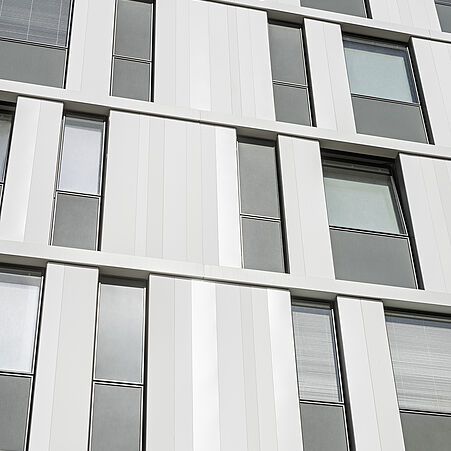

Barcode facade

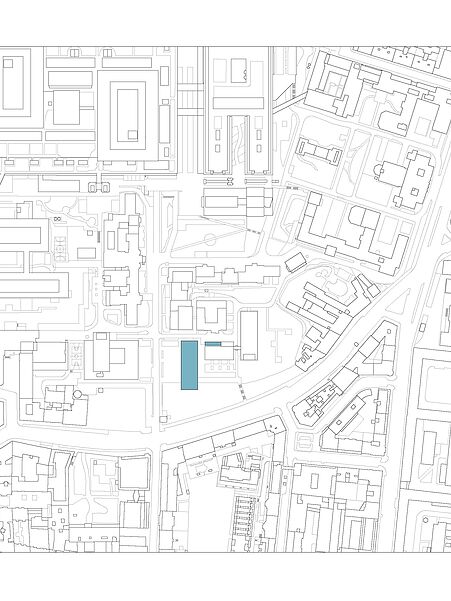

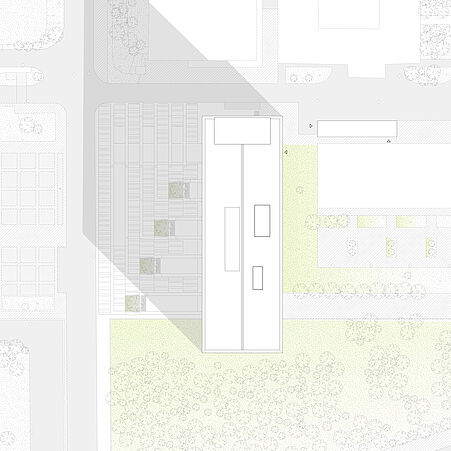

Site plan

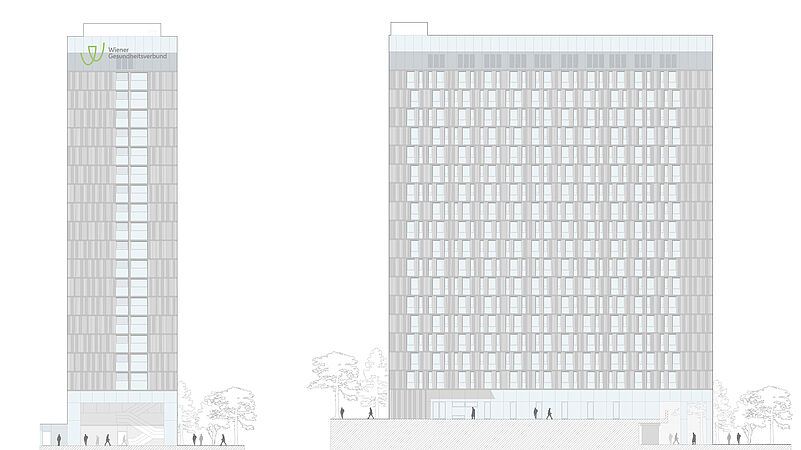

Elevation


The overall atmosphere brings the subtle charm of the sixties to the 2020s.

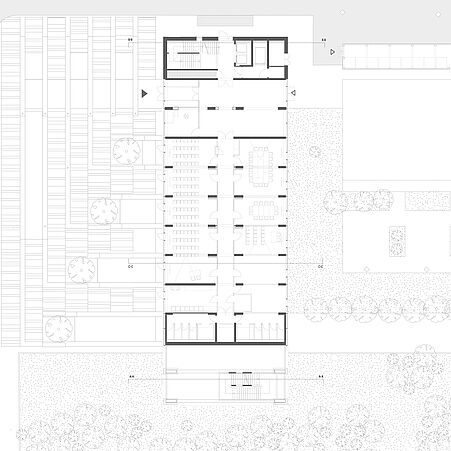

Ground floor

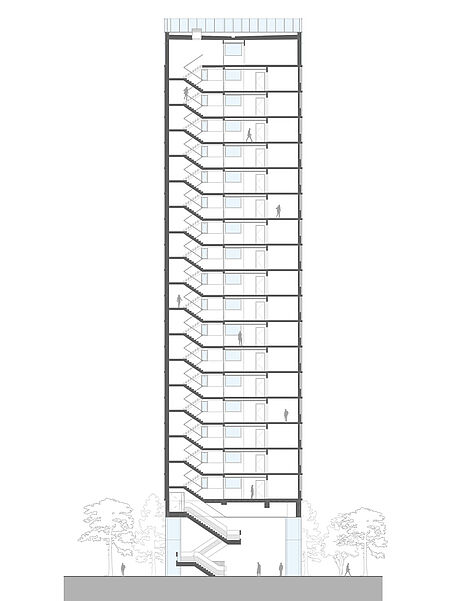

Section A-A

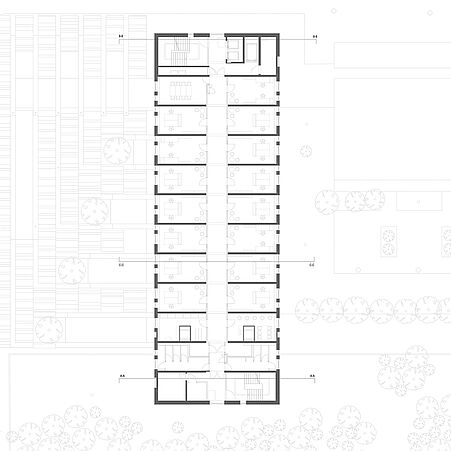

Standard storey


Site plan in context

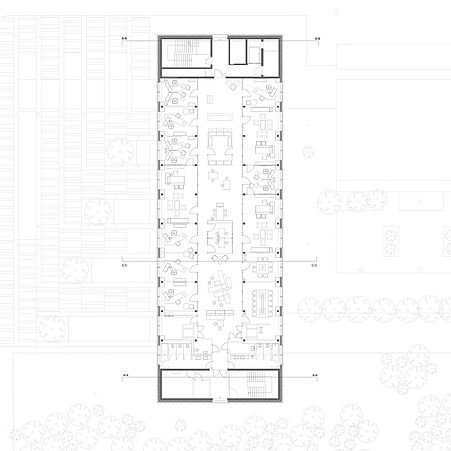

Top floor
